Description

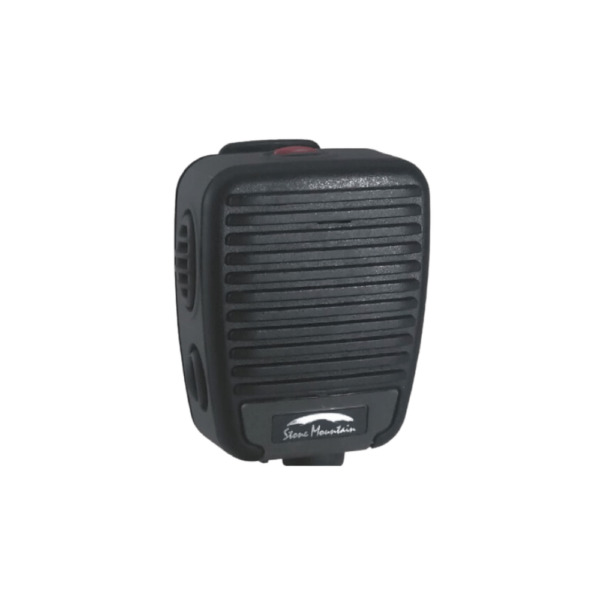

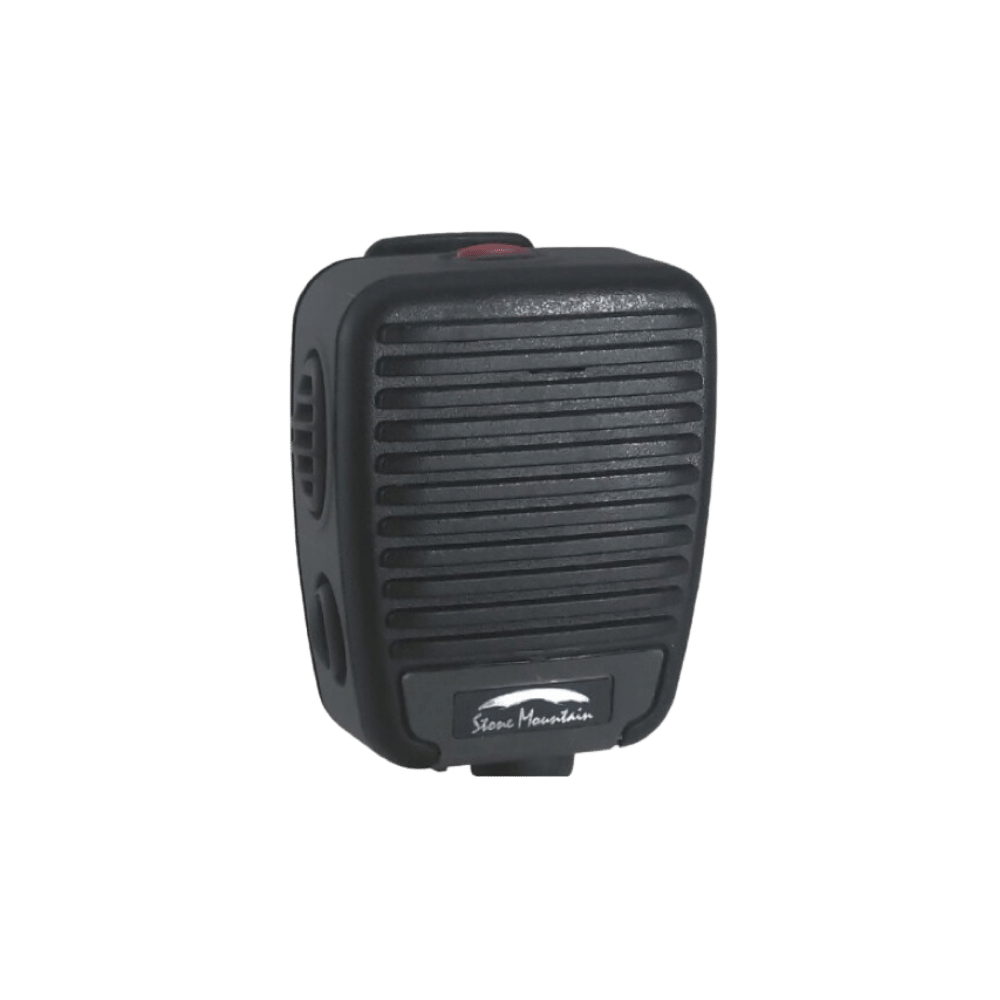

Stone Mountain Epic RSM
The Stone Mountain Epic RSM series is for Sonim XP8, XP5 & XP10 and Kenwood KWSA50K & KWSA80K.
The Epic Series from Stone Mountain is the world’s only waterproof, Mil-Spec compliant Speaker Mic for Mission Critical Push-to-Talk over Cellular (MCPTT) applications. Specifically designed for LTE Smartphones, such as the Sonim XP8 & XP5s and Kenwood KWSA50K & KWSA80K, the Epic is complimented by a complete line of audio accessories and charging options – See Epic Accessories. Designed, Assembled, Tested, and Supported with Pride in the USA, the Epic provides a rugged, feature-rich platform for your most demanding applications.
Designed, Assembled, Tested, and Supported with Pride in the USA, the Epic provides a rugged, feature-rich platform for your most demanding applications.
Features
- Waterproof to IP68 – 1 meter for 31 minutes.
- Meets/exceeds military environmental specs (Mil 810G).
- Large, super tactile side PTT.
- 14 level one-touch RampClickTM.
- SureSealTM 3.5mm Rx audio jack.
- OutLoudTM Neodymium magnet 50mm speaker.
- Gold plated Printed Circuit Board for 100% reliability.
- Secure 360° rotating belt clip w/ 45° positive detents.
- Ergonomic, plastic/rubber two shot molded case.

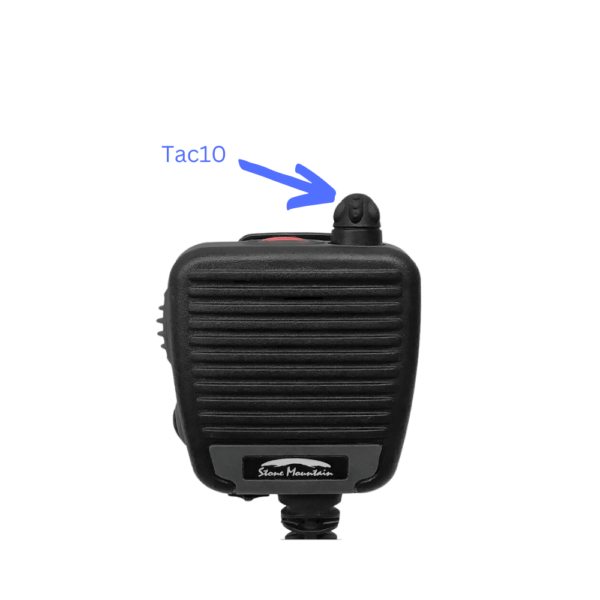

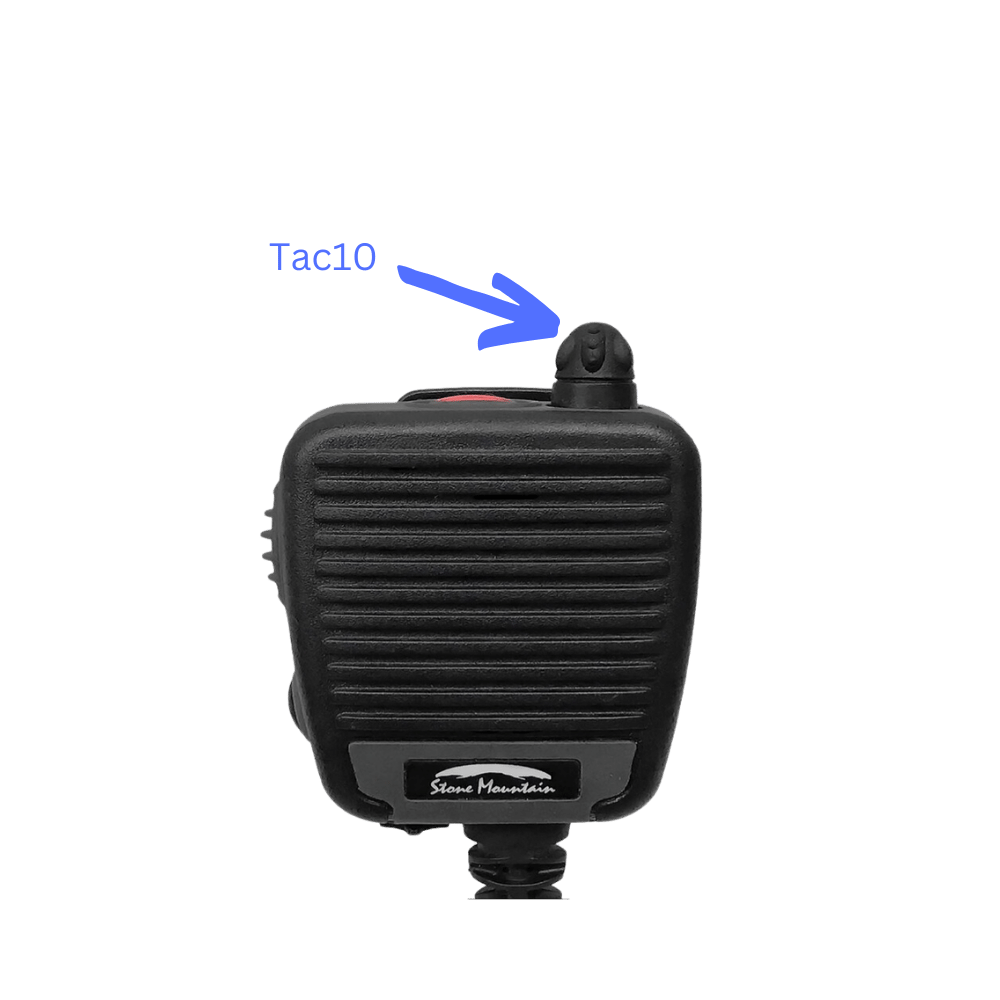

- Optional Tac10TM ten position channel select knob.
- Optional IS rated models available: Class 1, Div 2 Groups A, B, C, D, T4.
Compatibility
Devices: Sonim XP8, XP5 & XP10, Kenwood KWSA50K & KWSA80K
PTT: Compatible with many popular PTT application platforms, IWPTT, ESChat, PTTExpress, Sprint Direct, Zello etc.
Specifications
| Microphone Element | Omni directional |
| Microphone Sensitivity | -40dBV (0dB=1V/Pa) |
| Speaker Output Power | 1W |
| Speaker Output Level | Up to 116+ dB (device dependent) |
| Accessory Interace | 3.5mm sealed Rx audio jack |
| Dimensions | 79mm x 65mm x 29mm |
| Weight | 195 gm |
| PTT | High tactile |
| Emergency | Dedicated red button – PTT app dependent |
| Volume Control | RampClik one touch, 10 level, ~2.5 dB/level |
| PTT APP | Supports all major PTT apps |
| Hands Free Operation – Coming soon | Supports remote Rx, Tx & PTT – See TruDock and HanzFree accessories |
| Noise Reduction | Optional ProClear DSP noise reduction system |
| Rotating Belt Clip | 360° w/ positive detents every 45° / Replaceable / Optional button clip |
| Device Connector | Gold plated contacts, two shot molded housing |
| Mining/Industrial Rx Audio Protection | Optional MagShield acoustic speaker shroud |
| Channel Select | Optional Tac10 high tactile channel select knob |
| Hazardous Location Rating | Optional Certified Non-Incendive Class I, Division 2, Groups A, B, C & D, T4, -30° C ≤ Ta ≤ +60° C. |
| Immersion Rating | Designed to meet IP68 |
| Mil-Std 810 H | Designed to meet: |
| Low Pressure 500.6/1 | Yes |
| High Temp 501.7/I & II | Yes |
| Low Temp 502.7/I & II | Yes |
| Temp Shock 503.7/I | Yes |
| Solar Radiation 505.7/II | Yes |
| Blowing Rain 506.6/I | Yes |
| Humidity 507.6/II | Yes |
| Salt Fog 509.7/I | Yes |
| Sand & Dust 510.7/I | Yes |
| Immersion 512.6/I | Yes |
| Vibration 514.8/I/CAT 1 | Yes |
| Shock 516.8/I & IV | Yes |
| Warranty | 24 month |
The Stone Mountain Epic RSM is a great companion for PTT devices using Impulse Wireless PTT Services
