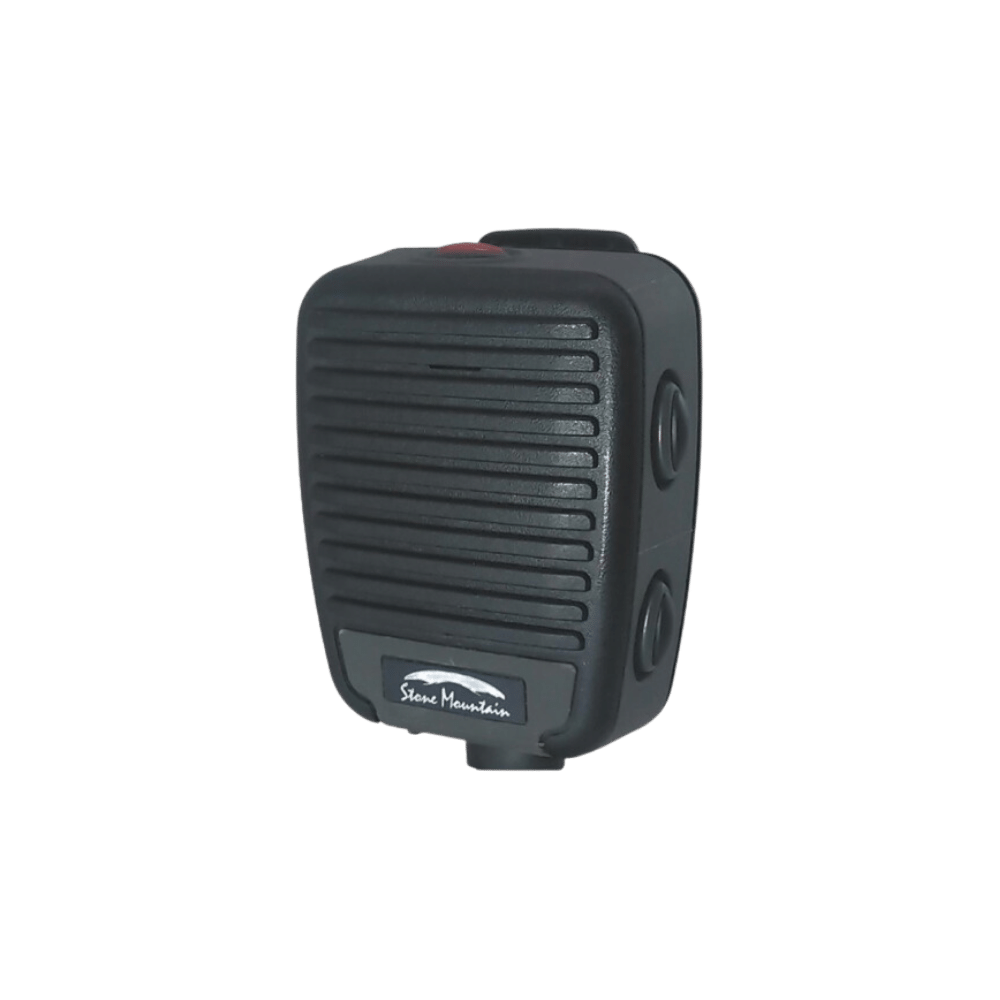

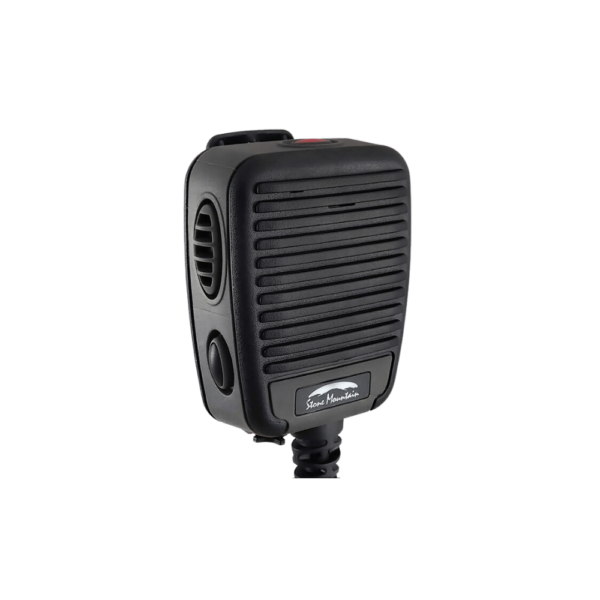

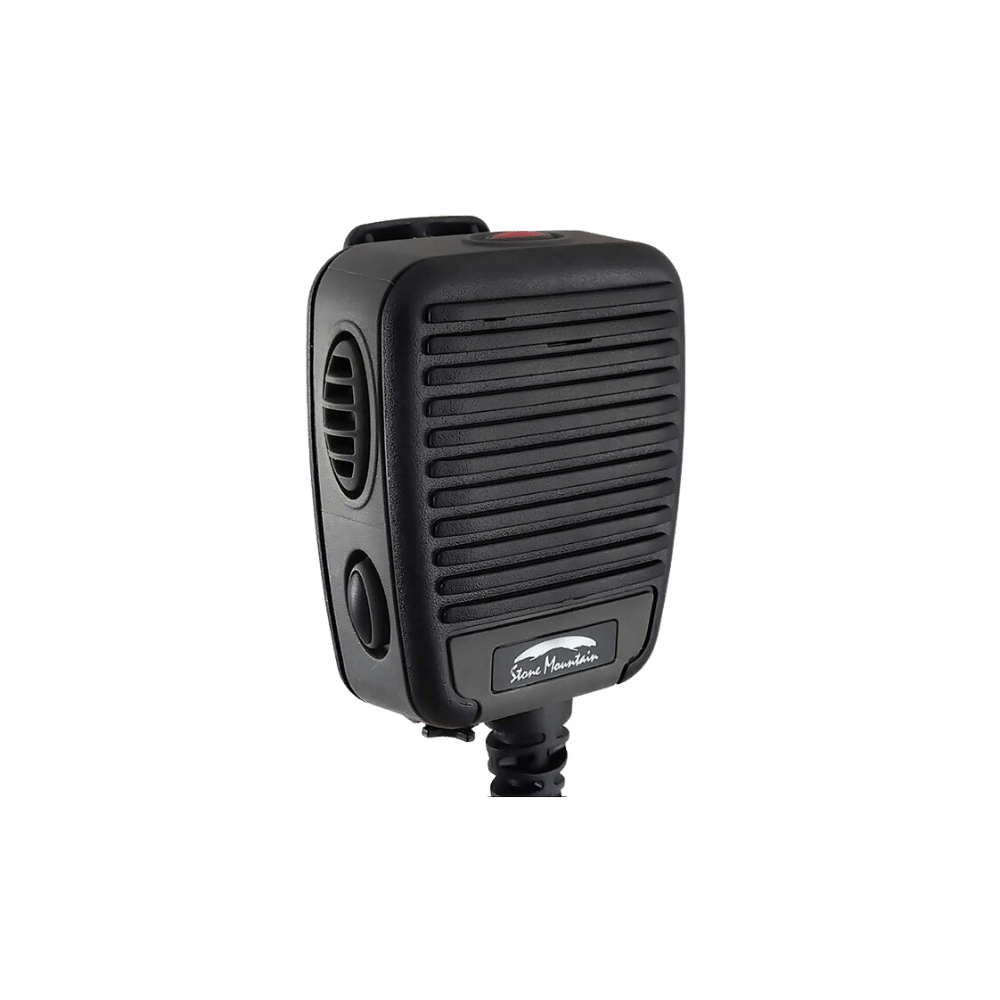

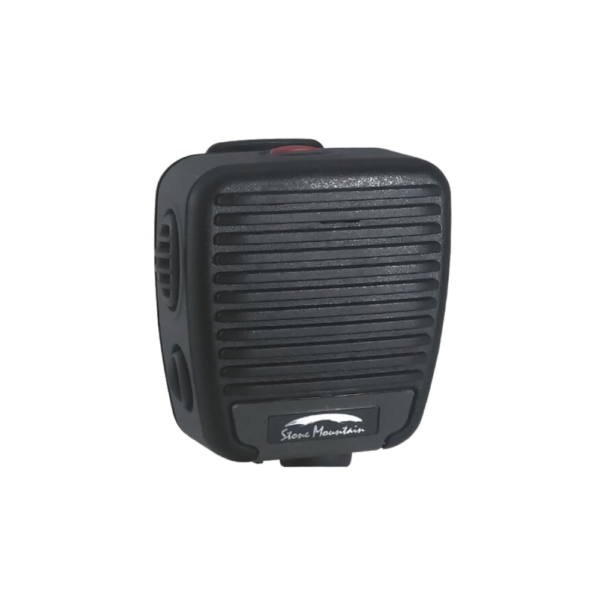

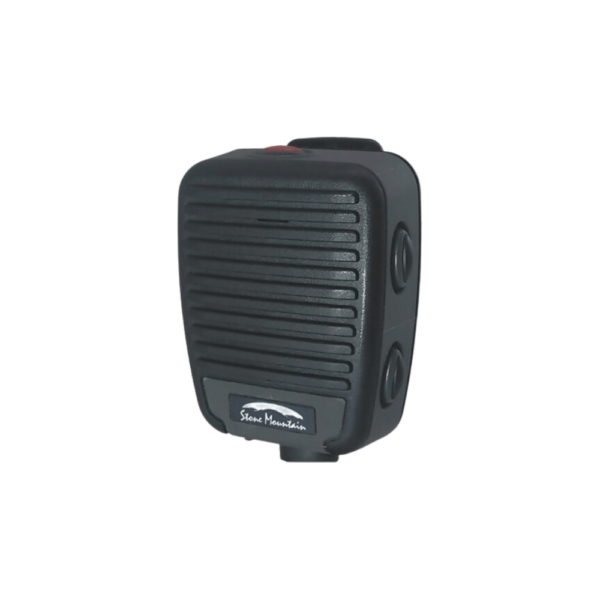

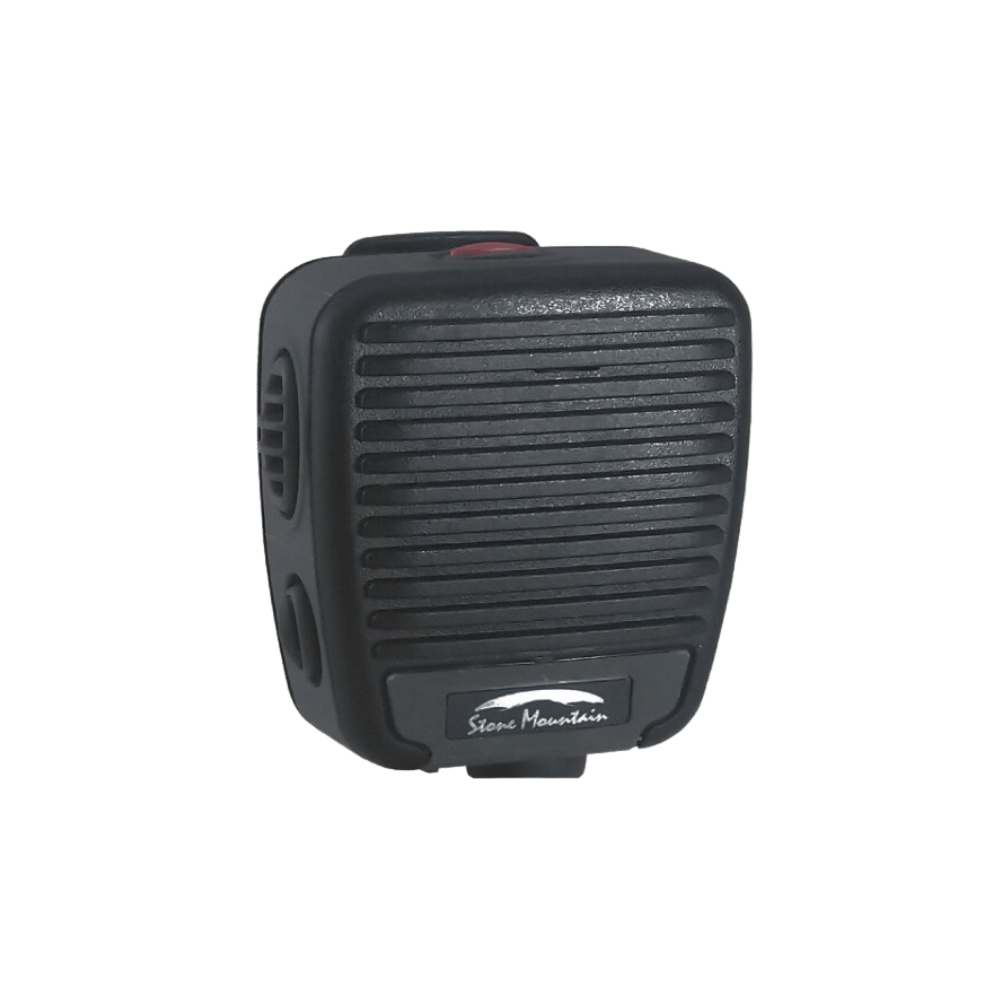

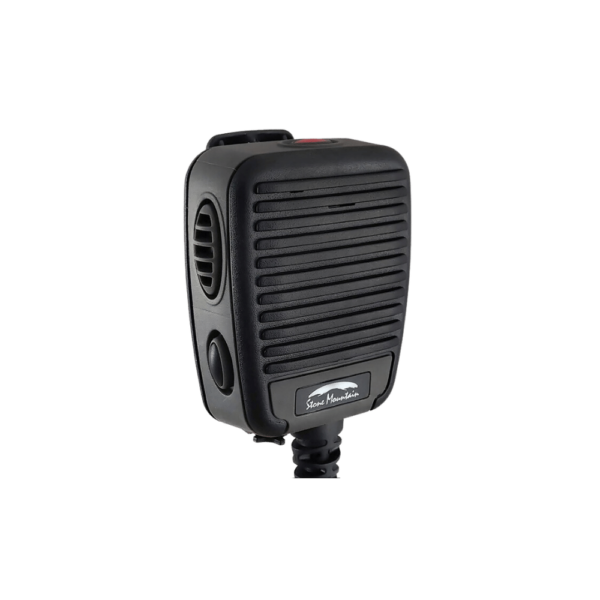

Elite PoC RSM Series
The new Phoenix Elite Series from Stone Mountain is the world’s only waterproof, Mil Spec compliant speaker mic for PoC (Push-to-talk over Cellular) applications. Major Smartphone & Tablet platforms and PoC app’s are supported. The Elite is complemented by an impressive array of audio, attachment, feature and charging options.
Ideally suited for commercial, business/industrial, transportation, security, fleet management, medical, public safety and military – The Phoenix Elite provides a rugged, feature rich platform for your most demanding applications.
Standard Features
•Waterproof to IP68 – 1 meter for 31 minutes.
•Meets/exceeds military environmental specs (Mil 810G).
•Large, super tactile side PTT.
•One touch Hi/Lo volume button.
•SureSealTM 3.5mm Rx audio jack.
•OutLoudTM Neodymium magnet 50mm speaker.
•Gold plated Printed Circuit Board for 100% reliability.
•Secure 360° rotating belt clip w/ 45° positive detents.
•Reinforced cable with integrally molded 5.5mm industrial grade charging port located just above the Device 3.5mm connector.
•Ergonomic, plastic/rubber two shot molded case.
•1,100 mAh LiIon extra-long life battery.
•Battery wall charger.
Options
•Optional MagShieldTM internal acoustic shroud to eliminate ingress of metallic and other industrial debris into the speaker cavity.
•Optional CallCheckTM – Allows the user to selectively record, store & playback receive audio transmissions. Ideal for use in compliance to distracted driving laws, high noise and critical •operating environments. Significantly decreases dispatcher work load and audio traffic.
•Optional Emergency/Alert/Man Down function – PoC app must support.
•Optional ProGroundTM DC-DC converter charging system – Eliminates engine noise, whine, etc. in poorly grounded, hostile electrical environments.
•Optional FasNTM Device Connector Retention System.
•Assorted Vehicular Installation systems available.
Custom system solutions available – All design/development work performed at Stone Mountain, USA.
WARRANTY MAY BE VOID IF A NON STONE MOUNTAIN CHARGER IS USED ON ANY STONE MOUNTAIN PRODUCT.
| Microphone Element | Omni directional |
| Microphone Sensitivity | -40dBV (0dB=1V/Pa) |
| Speaker Output Power | 1W |
| Speaker Output Level | Up to 116+ dB (device dependent) |
| Accessory Interace | 3.5mm sealed Rx audio jack |
| Dimensions | 79mm x 65mm x 29mm |
| Weight | 225 gm |
| PTT | High tactile |
| Emergency | Dedicated red button – PTT app dependent |
| Volume Control | RampClik one touch, 10 level, ~2.5 dB/level |
| Hands Free Operation | Supports remote charging, Rx, Tx & PTT – See TruDock and HanzFree accessories |
| Noise Reduction | Optional ProClear DSP noise reduction system |
| Message Playback | Optional CallCheck – Supports message record, store & playback |
| Programmable Buttons | Two – Optional feature and/or PTT app dependent |
| Battery | 1,100 mAh Li-Ion |
| Battery Life – Normal Use / Off | ~30 hours / ~30 days |
| Charging | 5.5 mm industrial grade connector (USB adapters available) |
| Charging, Remote | TruDock charging, docking & mounting solutions |
| Low Battery Warning | Audible (beep) & visual (LED) |
| PTT APP | User configurable, supports all major PTT apps, Android & iOS |
| Rotating Belt Clip | 360° w/ positive detents every 45° / Replaceable / Optional button clip |
| Mining/Industrial Rx Audio Protection | Optional MagShield acoustic speaker shroud |
| Hazardous Location Rating | Optional Certified Non-Incendive Class I, Division 2, Groups A, B, C & D, T4, -30° C ≤ Ta ≤ +60° C. |
| Immersion Rating | Designed to meet IP68 |
| Mil-Std 810H | Designed to meet: |
| Low Pressure 500.6/1 | Yes |
| High Temp 501.7/I & II | Yes |
| Low Temp 502.7/I & II | Yes |
| Temp Shock 503.7/I | Yes |
| Solar Radiation 505.7/II | Yes |
| Blowing Rain 506.6/I | Yes |
| Humidity 507.6/II | Yes |
| Salt Fog 509.7/I | Yes |
| Sand & Dust 510.7/I | Yes |
| Immersion 512.6/I | Yes |
| Vibration 514.8/I/CAT 1 | Yes |
| Shock 516.8/I & IV | Yes |
| Warranty | 24 month, excluding battery |
