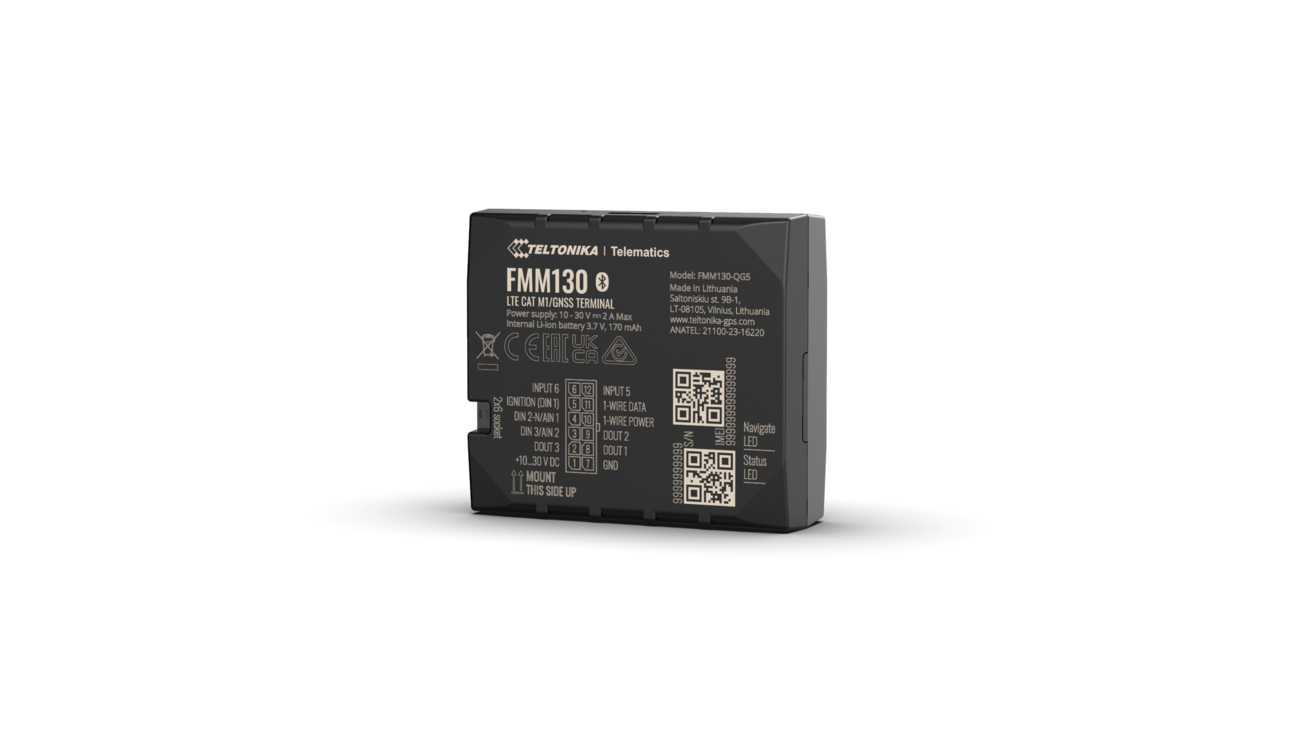

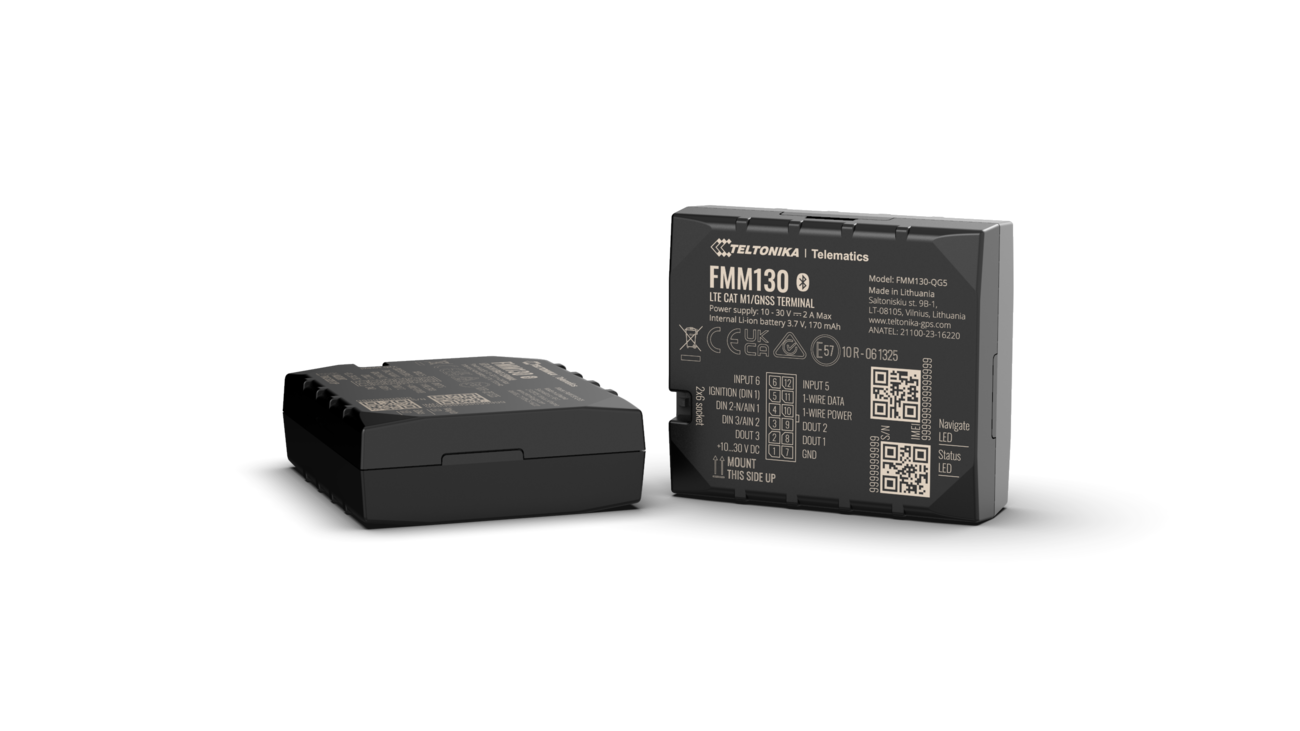

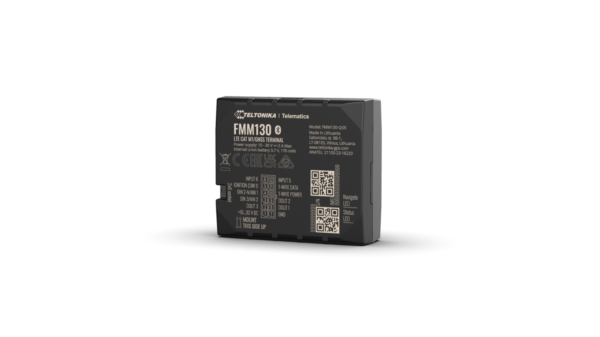

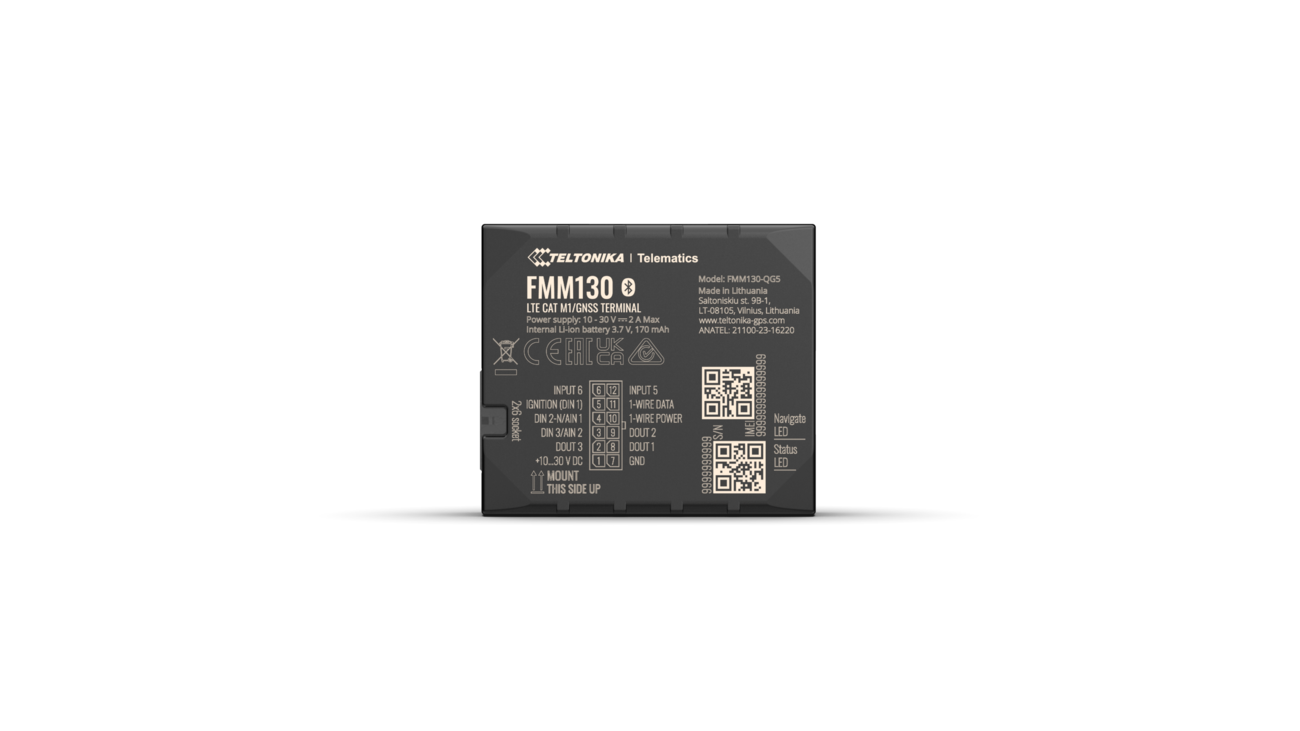

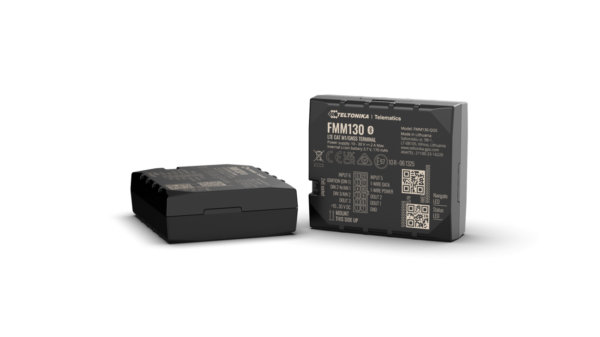

Teltonika FMM130 Cat-M1 GPS Tracker

Description

Hard Wired GPS tracker for Fleet Management Systems

The Teltonika FMM130 GPS Tracker boasts High Gain GNSS and IoT/LTE Cat-M1 Antennas, Internal Backup Battery. Supports both LTE Cat M1 and NB IoT connectivity

Advantages:

High resolution tracking, Superior coverage thanks to LTE Cat-M1 connectivity, configurable digital/analog/negative and impulse inputs, three Digital outputs, Bluetooth connectivity, and backup battery

FMM13A is small and professional real-time tracking terminal with GNSS and LTE CAT-M1 connectivity and backup battery. Device equipped with  NSS/Bluetooth and LTE CAT-M1 module, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies,
public transport, logistics companies, personal cars and so on.

Features:

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS (33 tracking channels)
• Cellular: LTE CAT M1/NB-IoT/GSM
• Voltage Range: 10–30 V DC with overvoltage and reverse polarity protection
• Bluetooth 4.0 +LE
• Environment: -20 ‘C to +85’C
• Sensor: Accelerometer
• Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
• Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Specification Sheet :

Teltonika FMM130 CAT-M1 GPS Tracker Specification Sheet

Installation Guide:

The Teltonika FMM130 CAT-M1 GPS Trackerr is the perfect partner for your vehicles, providing significant improvement over standard 4G.
