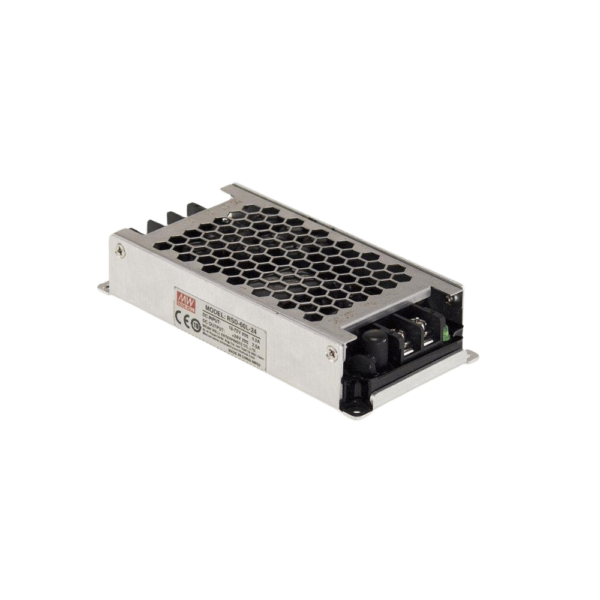

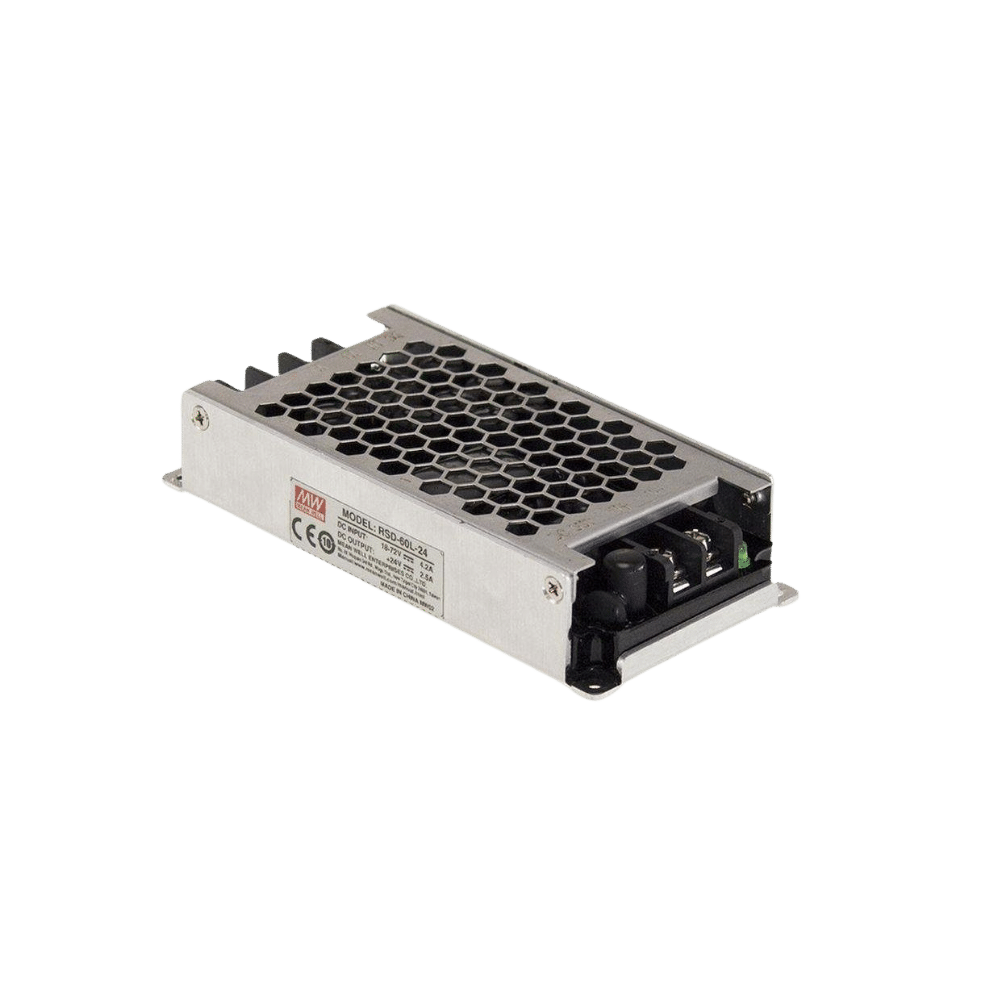

MEAN WELL RSD-60G-12
The MEAN WELL RSD-60G-12 is a 60Watt DC-DC converter with Input voltage of 9-36Vdc; Output voltage of 12Vdc at 5A; railway standard EN50155; 4000Vdc I/O isolation.
This device has low ripple and noise, supreme EMC characteristics, low enclosure profile and an interior with semi-potted silicone.
Application includes bus/train/metro or railway system, wireless network, telecom or datacom system, highly vibrating, highly dusty, extremely low or high temperature harsh environment.
It includes short circuit, overload, over voltage, input reverse polarity- protection. Application includes bus/train/metro or railway system, highly vibrating, highly dusty, extremely low or high temperature harsh environment, wireless network, telecom or datacom system, industry control system.
Features:
- Input voltage range from 9 to 36VDC (continuous), output voltage is 12V
- Output rated current is 5A, output rated power is 60W, typical efficiency is 92.5%
- Ultra compact and 1U low profile(25mm), no minimum load required
- 4000VDC I/O isolation (reinforced isolation), half encapsulated , cooling by free air convection
- Built-in constant current limiting circuit, LED indicator for power on
- 3 years warranty
- Working temperature range from -40 to +55°C(no derating)
- Dimension is (L x W x H) 128 x 60 x 25mm
- N50155 and EN45542-2 compliance
- Ultra compact: 1U low profile
- Approved by IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004, design refer to BS EN/EN62368-1.
