$96.98 excl. GST

DC-DC Enclosed converter; Input 9-36Vdc; Output 12Vdc at 2.5A; railway standard EN50155; 4000Vdc I/O isolation

SKU: RSD-30G-12 Categories: , ,

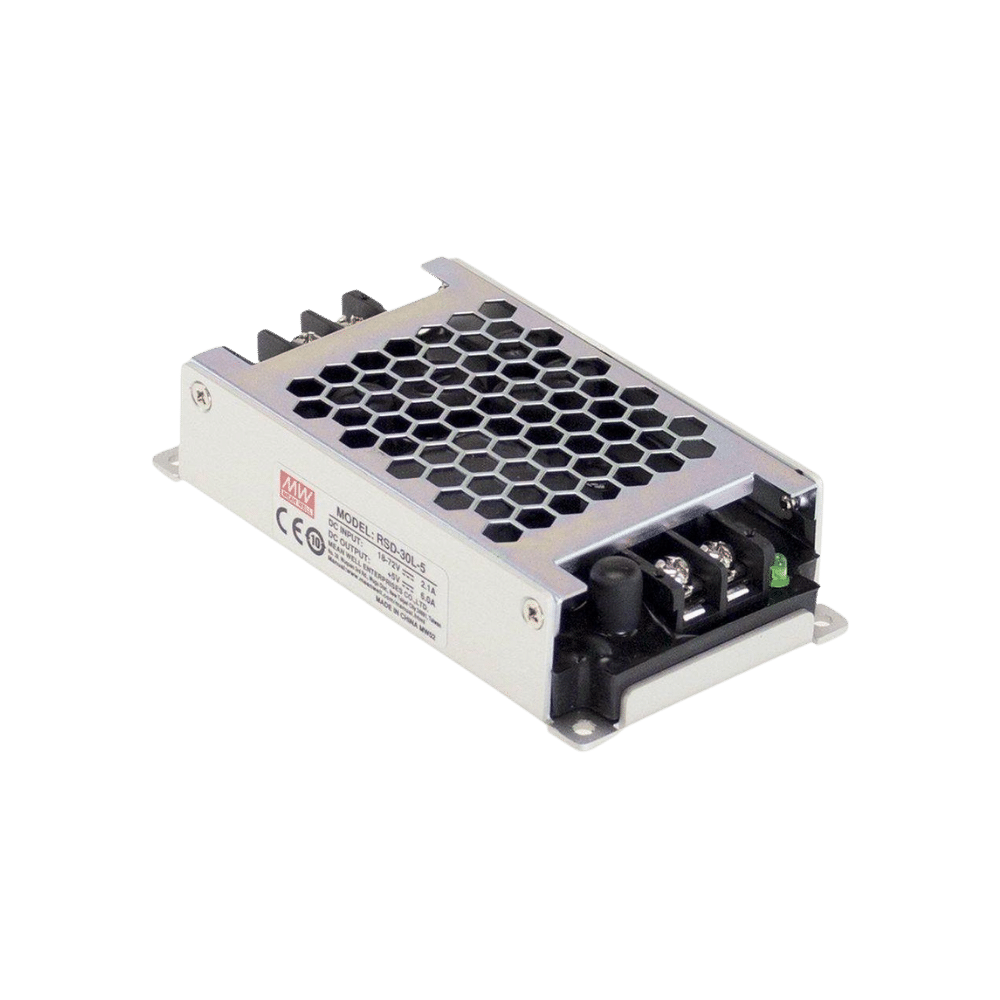

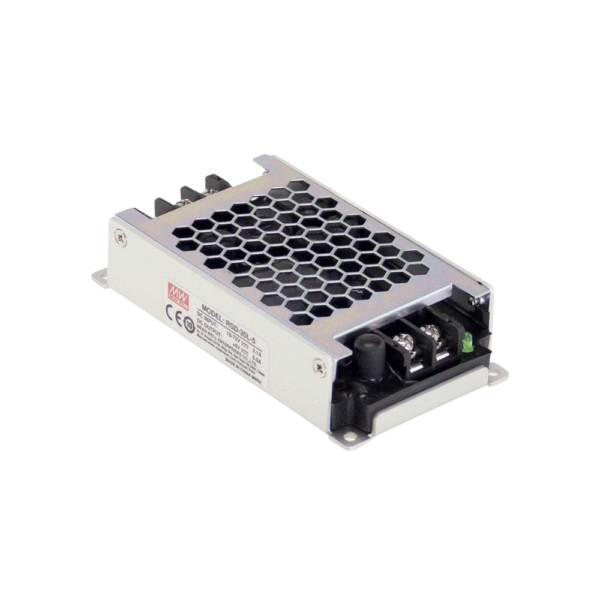

RSD-30G-12 is a RSD-30 series 30W enclosed type DC-DC reliable railway converter. This is compliant with BS EN/EN50155/ IEC60571 railway standard, low ripple and noise, supreme EMC characteristics, 4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone.

Application includes bus/train/metro or railway system, wireless network, telecom or datacom system, highly vibrating, highly dusty, extremely low or high temperature harsh environment.

•Input voltage range from 9 to 36VDC, output voltage is 12V
•Output rated current is 2.5A, output rated power is 30W, typical efficiency is 86.5%
•Ultra compact and 1U low profile(25mm), no minimum load required
•4000VDC I/O isolation (reinforced isolation), half encapsulated , cooling by free air convection
•Built-in constant current limiting circuit, LED indicator for power on
•Approved by IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004, design refer to BS EN/EN62368-1.
•3 years warranty
•Working temperature range from -40 to +55°C(no derating)
•Dimension is (L x W x H) 113 x 60 x 25mm
•EN50155 and EN45545-2 compliance

Ultra compact: 1U low profile
